ML SERIES SINGLE-PHASE DUAL-CAPACITOR MOTORS

Type
Output
Current
(A)
Power
factor
Eff
(%)
Speed
(r/min)
Tstart/Tn
Ist/In
Tmax/Tn
kW
HP
ML711-2
0.37
0.5
2.6
0.95
68
2760
2.2
6.5
1.7
ML712-2
0.55
0.75
3.71
0.95
71
2760
2.2
6.5
1.7
ML801-2
0.75
1
4.92
0.95
73
2780
2.2
6.5
1.7
ML802-2
1.1
1.5
7.02
0.95
75
2780
2.2
6.5
1.7
ML90S-2
1.5
2
9.32
0.95
77
2800
2.2
6.5
1.7
ML90L-2
2.2
3
13.5
0.95
78
2800
2.2
6.5
1.7
ML100L-2
3
4
18.2
0.95
79
2820
2
7
1.7
ML112M-2
3.7
5
22.1
0.95
80
2820
2
7
1.7
ML711-4
0.25
0.33
1.9
0.95
63
1360
2.2
6.5
1.7
ML712-4
0.37
0.5
2.64
0.95
67
1360
2.2
6.5
1.7
ML801-4
0.55
0.75
3.76
0.95
70
1380
2.2
6.5
1.7
ML802-4
0.75
1
4.98
0.95
72
1380
2.2
6.5
1.7
ML90S-4
1.1
1.5
7.11
0.95
74
1400
2.2
6.5
1.7
ML90L-4
1.5
2
9.44
0.95
76
1400
2.2
6.5
1.7
ML100L1-4
2.2
3
13.7
0.95
77
1410
2
7
1.7
ML100L2-4
3
4
18.4
0.95
78
1420
2
7
1.7
ML112M-4
3.7
5
22.4
0.95
79
1420
2
7
1.7

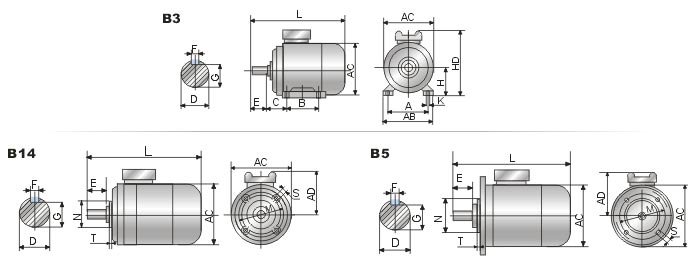

Overall & Installation Dimensions
Frame
No
Installation Size
Installation Size For B5
Installation Size For B14
Overall Dimension
A
B
C
D
E
F
G
H
K
M
N
P
S
T
M
N
P
S
T
AB
AC
AD
HD
L
71
112
90
45
14
30
5
11
71
7
130
110
160
10
3.5
85
70
105
M6
2.5
135
140
107
178
246
80
125
100
50
19
40
6
16
80
10
165
130
200
12
3.5
100
80
120
M6
3
155
160
141
221
299
90S
140
100
56
24
50
8
20
90
10
165
130
200
12
3.5
115
95
140
M8
3
175
175
160
250
328
90L
140
125
56
24
50
8
20
90
10
165
130
200
12
3.5
115
95
140
M8
3
175
175
160
250
358
100L
160
140
63
28
60
8
24
100
12
215
180
250
15
4
130
110
160
M8
3.5
200
195
160
260
412
112M
190
140
70
28
60
8
24
112
12
215
180
250
15
4
130
110
160
M8
3.5
226
220
166
278
421
